BLACK UNICORN HEAD

Designed and engineered with the highest response and stabilization goals in mind, the digitally balanced 3-axis head is built to shine in any type of weather as part of any type of setup. You can change and re-rig the whole camera-lens setup in minutes, from balancing to tuning, giving you the chance to catch that one perfect shot.

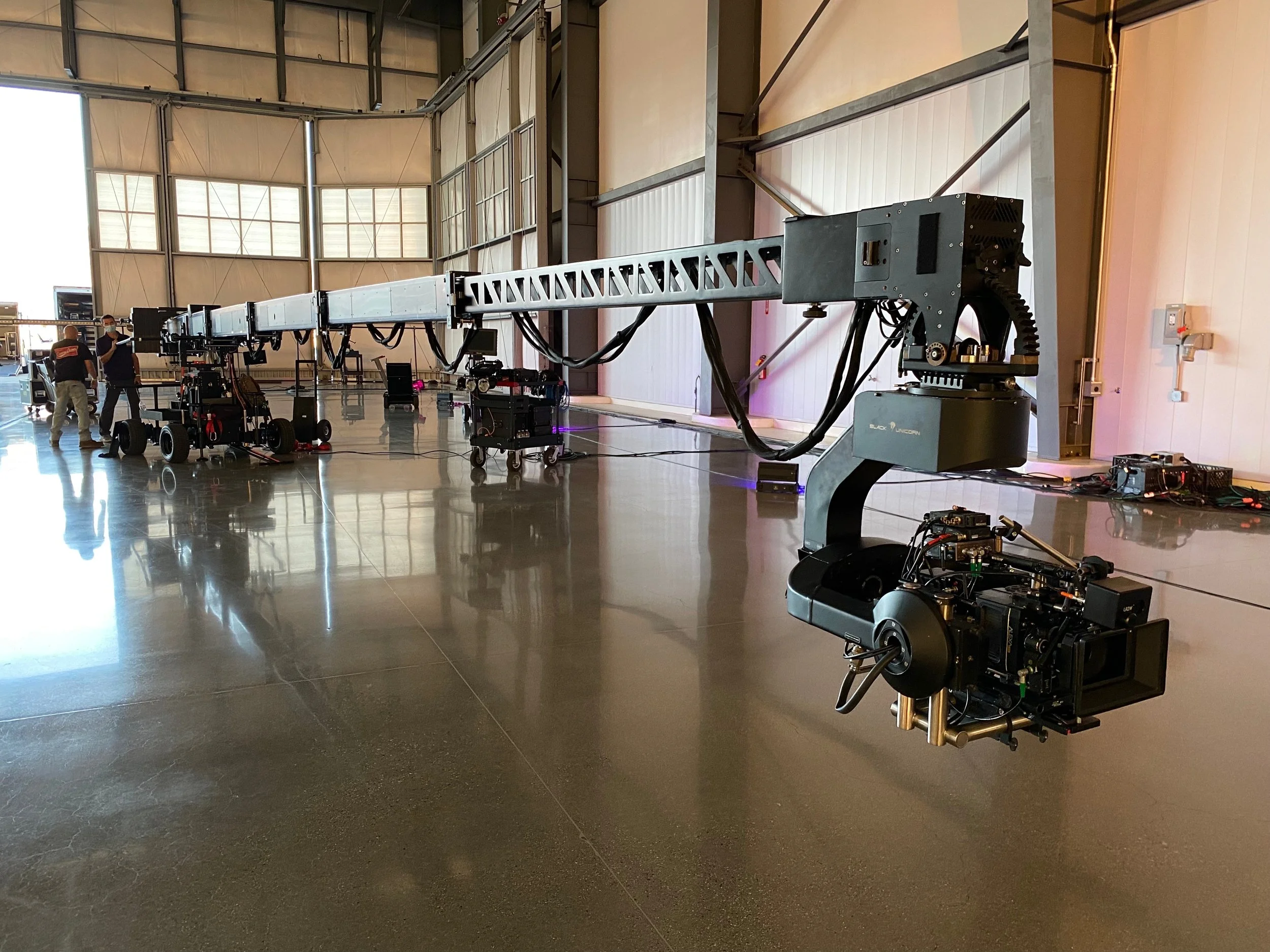

The Black Unicorn Head is compatible with the largest professional lenses and pairs nicely with matte boxes, spinners, lens motors, MDRs, witness cameras, extra batteries and a moderate 3D rig. It excels in extreme conditions, whether attached to a camera car, helicopter, train or boat, in torrential rain or a frigid winter, but is is also refined, with powerful and smooth direct-drive motors that are quiet enough to work on studio dollies, jibs, telescopic cranes and cable-cam systems without interfering with your sound recording.

HEAD SPECIFICATIONS

  • Payload Capacity - 40 kg / 88 lbs (recommended payload); up to 70 kg / 154 lbs (max payload if needed)

  • Weight - 23 kg / 50 lbs

  • Pan Range - ±360º x4 full turns each way

  • Tilt Range - 360º / can set limits

  • Dutch Range - ±360º x4 / automatic & custom horizon

  • Pan, Tilt, Dutch Speed - 360º in 1.5 seconds (240º/s)

  • Programmability: record up to 6 repeatable camera movements

  • Water & Dust Resistance - IP65

  • Temperature Range - -30ºC to +50ºC / -22ºF to 122ºF

  • Stabilization of Zoom Lens - up to 350 mm

  • Stabilization Accuracy - 1.5 arc min

  • Carrier Speed - 112 mph/ 56 mph off-road

  • Voltage - 48 VDC

  • Current: Standby – Max - 1 A – 12 A

  •  Adjust Limits, Coefficients, Speeds, Curves - All Axes
